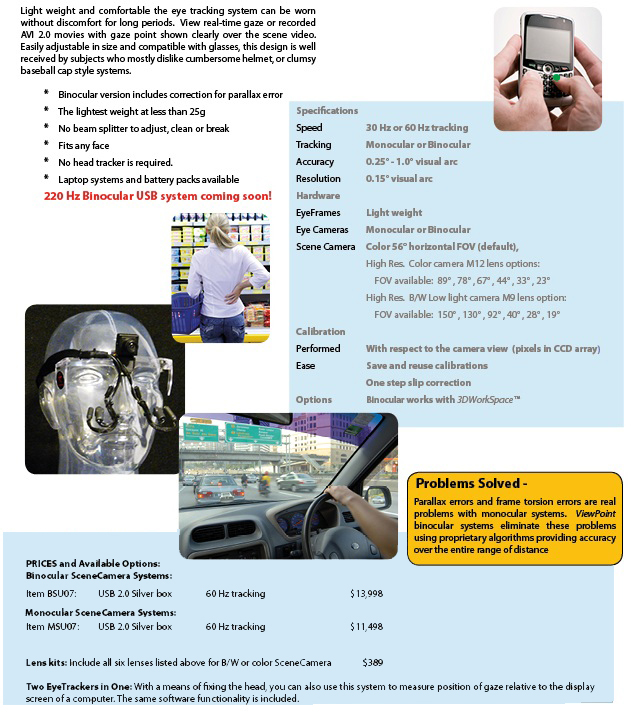

| Scene Camera Software:
The Scene Camera option allows ViewPoint EyeTracker® users to track gaze position on a real world scene video.
- Eye movement data recorded at 60Hz
- Monocular or binocular options available
- Parallax error correction provided in the binocular system for viewing distances different from the original calibration distance,
- Gaze video overlay on EyeFrame mounted color or black and white head mounted scene camera ( up to 30 fps)
- Save scene movie with gaze overlay to hard drive for replay in ViewPoint
- Default camera is: Color, diagonal=70, horizontal=56, vertical=42 Optional different field of view cameras available on request.
 EyeFrame Hardware: Light weight and comfortable the eye tracking system can be worn without discomfort for long periods. Easily adjustable in size and compatible with glasses this design is well received by subjects who mostly dislike helmet style systems.
User Applications: For use where freedom of movements is essential. For examples refer to our user applications page.
Real Time Display: Video showing position of gaze. Pen plots showing X and Y position of gaze, velocity, ocular torsion, pupil width and pupil aspect ratio etc.
Post Hoc Output: Video showing position of gaze. ASCII format data files. Eye data: X, Y position of gaze, pupil height and width, ocular torsion, delta time, total time, and fixation durations. Asynchronous records include: Synchronization markers, key presses, data from other programs.
Note: No head tracker is required as calibration is performed with respect to the pixels in the CCD array.
Available Options:
- Laptop system: The monocular scene camera system can be provided as a laptop compatible system. See Item MSE07
- High resolution, low light black and white scene camera: On request the standard color scene camera can be replaced with a high resolution, low light black and white scene camera. See Item 0025
- Lens Kit: A lens kit for the high resolution scene camera can be provided. This includes lenses to provide the following horizontal field of views: 150º , 130º , 92º , 40º , 28º , 19º . See Item 0026
- Individual Lenses: Individual lenses for the high resolution scene camera from the above selection can also be purchased. See item 0027
- High resolution color scene camera: On request the standard color scene camera can be replaced with a high resolution color scene camera. See Item 0028
- Lens Kit: A lens kit for the high resolution scene camera can be provided. This includes lenses to provide the following horizontal field of views: 89º, 78º, 67º, 44º, 33º, 44º, 23º . See Item 0029
- Individual Lenses: Individual lenses for the high resolution scene camera from the above selection can also be purchased. See item 0030
|
